產品名稱：RY1302 2 Channel 5.5V 1.5A 1.5MHz DC-DC Step down PMU
型號： RY130
產片介紹：The RY1302 is a 2-CH power management IC for applications powered by one Li-Ion battery or a DC 5V adapter It integrates dual synchronous buck regulators and can provide high efficiency output at light load and heavy load operation The internal compensation architecture simplifies the application circuit design
產片介紹：The RY1302 is a 2-CH power management IC for applications powered by one Li-Ion battery or a DC 5V adapter It integrates dual synchronous buck regulators and can provide high efficiency output at light load and heavy load operation The internal compensation architecture simplifies the application circuit design
┄┄┄詳細介紹┄┄┄
General Description
The RY1302 is a 2-CH power management IC for applications powered by one Li-Ion battery or a DC 5V adapter. It integrates dual synchronous buck regulators and can provide high efficiency output at light load and heavy load operation. The internal compensation architecture simplifies the application circuit design. Besides, the independent enable control makes the designer have the greatest flexibility to optimize timing for power sequencing purposes. The RY1302 is available in a 10 pin DFN package.
Feature
• 2.5V to 5.5V Input Voltage Range
• Two Buck Converters
• Output Voltage Range: 0.6V to Vin
• Maximum Continuous Load Current:1.5A (2CH total output power
consumption must be less than 5W)
• Fixed 1.5MHz Switching Frequency
• 100% Duty Cycle Low Dropout Operation
• <1μA Shutdown Current
• Independent Enable Control
• Internal Compensation
• Cycle-by-Cycle Current Limit
• Short Circuit Protection
• Each Channel Efficiency Up to 95%
• Auto Recovery OTP Protection
• Available in 10-pin 3mm ×3mm DFN Package
Applications
• Wi-Fi Card • GPS
• Wi-Fi Router/AP • STB

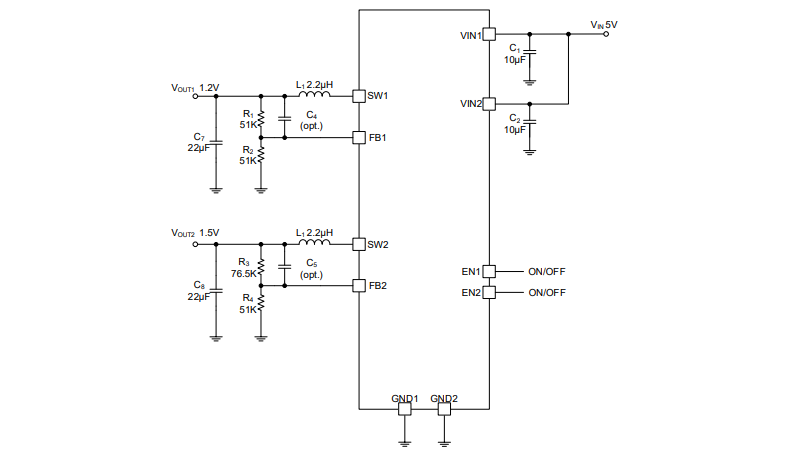

Typical Application Circuit
